主要零件材质
|
零件名称 |
ZGICr18Ni9Tit系列 |
ZG00Cr18Ni10系列 |
ZG1Cr18Ni12M02Ti系列 |
ZG00Cr17Ni14M02系列 |
WCB系列 |
|
阀体/阀盖 |
ZG1Cr18Ni9Ti |
ZG00Cr18Ni10 |
ZG1Cr18Ni12M02Ti |
ZG00Cr17Ni14M02 |
WCB |
|
阀杆 |
ZG1Cr18Ni9Ti |
ZG00Cr18Ni10 |
ZG1Cr18Ni12M02Ti |
ZG00Cr17Ni14M02 |
WCB |
|
阀瓣 |
ZG1Cr18Ni9Ti |
ZG00Cr18Ni10 |
ZG1Cr18Ni12M02Ti |
ZG00Cr17Ni14M02 |
WCB |
|
垫片 |
304＋PTFE |
304L＋PTFE |
316＋PTFE |
316L＋PTFE |
石墨＋304 |
|
螺柱 |
1Cr17Ni2 |
1Cr17Ni2 |
1Cr17Ni2 |
1Cr17Ni2 |
35CrMoA |
|
螺母 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
45 |

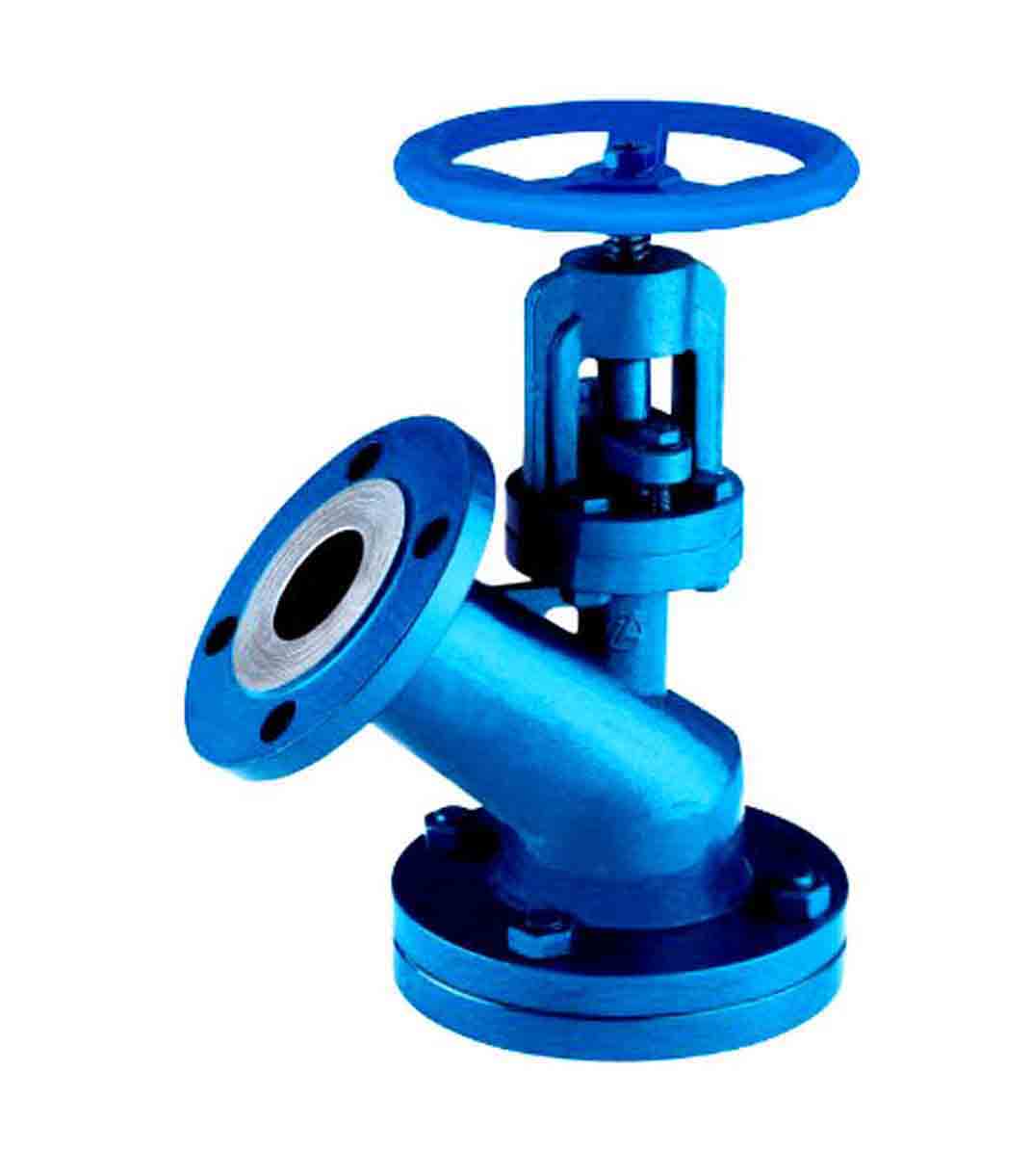

下展式放料阀
|
DN |
上法兰 |
上法兰 |
下法兰 |
密封座 |
|
D1 |
D2 |
D3 |
D4 |
D5 |
D6 |
|
25 |
115 |
85 |
135 |
100 |
70 |
40 |
|
32 |
135 |
100 |
145 |
110 |
75 |
55 |
|
40 |
145 |
110 |
160 |
125 |
100 |
65 |
|
50 |
165 |
125 |
180 |
145 |
85 |
70 |
|
65 |
180 |
145 |
195 |
160 |
135 |
90 |
|
80 |
192 |
160 |
215 |
180 |
155 |
130 |
|
100 |
215 |
180 |
245 |
210 |
195 |
135 |
|
125 |
245 |
210 |
280 |
245 |
180 |
145 |
|
150 |
280 |
240 |
335 |
295 |
210 |
185 |
|
200 |
335 |
295 |
405 |
335 |
|
|
|
| |
|
|
|
|
